Operating weight: 18,600 kg / 19,400 kg (depending on arm length)
Bucket capacity: 3-4.2 m³
Configuration selling point:
Equipped with a WD10 engine (customized by Weichai, which is affiliated with Shantui), optimally matched with Shantui’s self-developed planetary transmission. This forms an energy-saving and efficient "golden core" powertrain for improved operational efficiency.
Ease of maintenance and operator comfort:

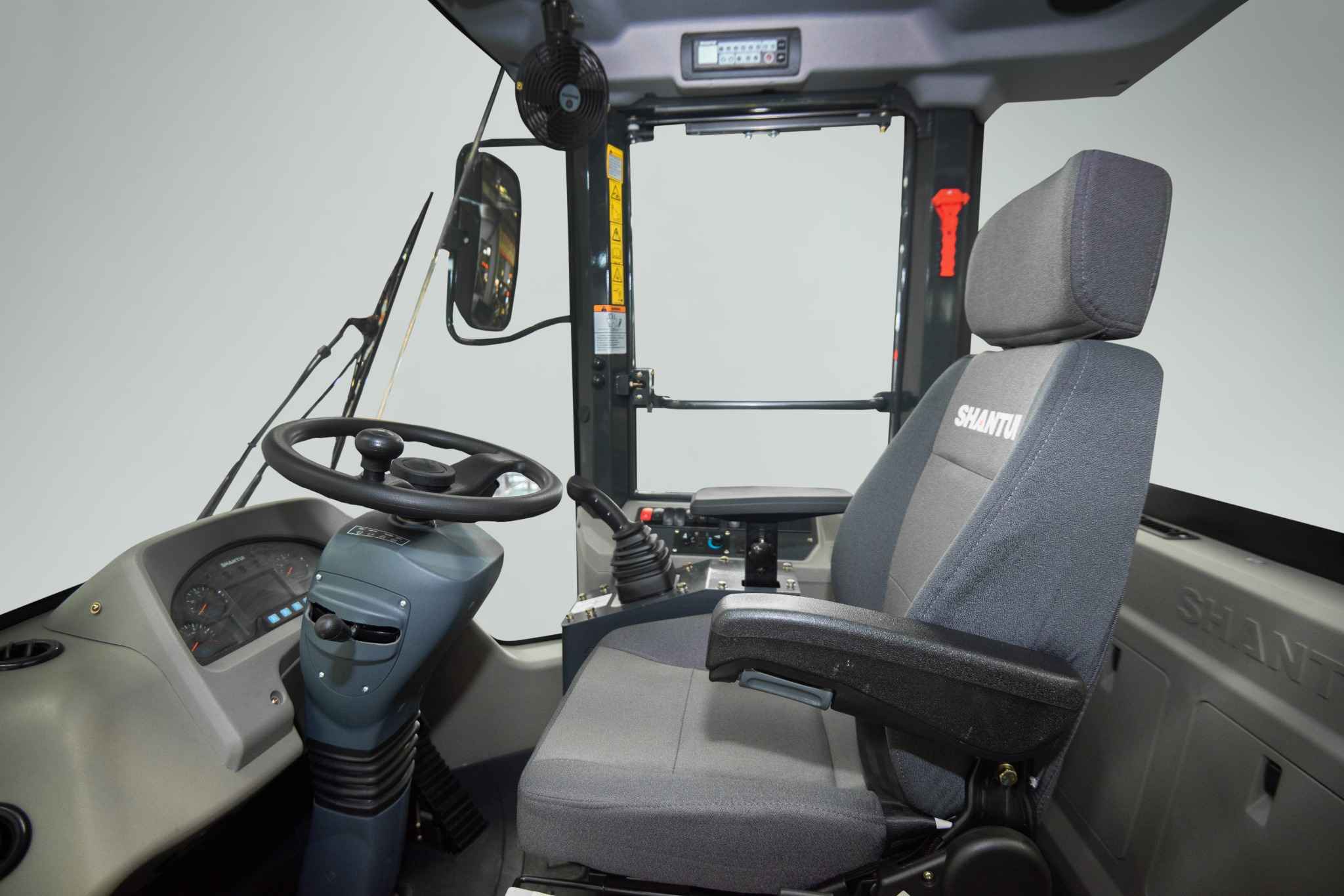

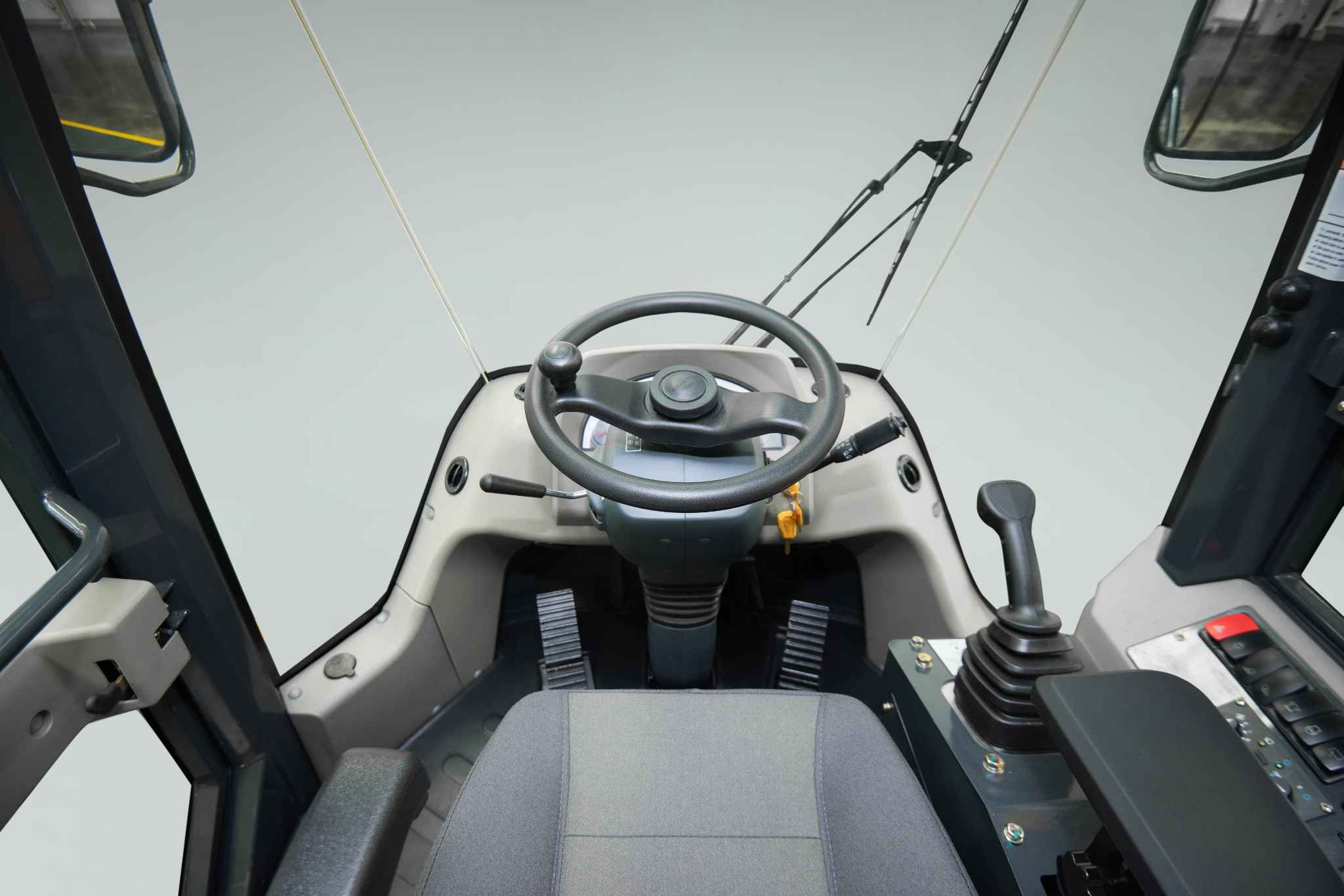

Integrated cab offers 15% more interior space, better sealing, and reduced noise.
Air and diesel filters are placed on the same side as the engine for convenience.
Brake calipers on the drive axle are located externally, and there's an integrated relay box for simpler maintenance.
Adaptability to diverse working conditions:
Long wheelbase and double taper roller bearings at the articulation increase load-bearing capacity.
Large-capacity bucket rated at up to 5.5 t for efficient handling of various light and heavy-duty tasks.
Total power: 162 kW
Operating weight: 18,600 kg / 19,400 kg (*)
Bucket capacity: 4.2 m³
External dimensions: 8,330 mm / 8,930 mm (*) × 3,020 mm × 3,520 mm
Rated loading capacity: 5.8 t
Maximum dumping height: 2,920 mm / 3,600 mm (*)
Dumping distance 1,320 mm / 1,330 mm (*)
Subtotal (probably break‑out force?) 10.5
Wheelbase 3,300 mm
Maximum speed Forward: 39 km/h; Reverse: 15 km/h
Emissions Tier 2 / Stage II
(*) Indicates differences between standard arm and long‑arm configurations.
