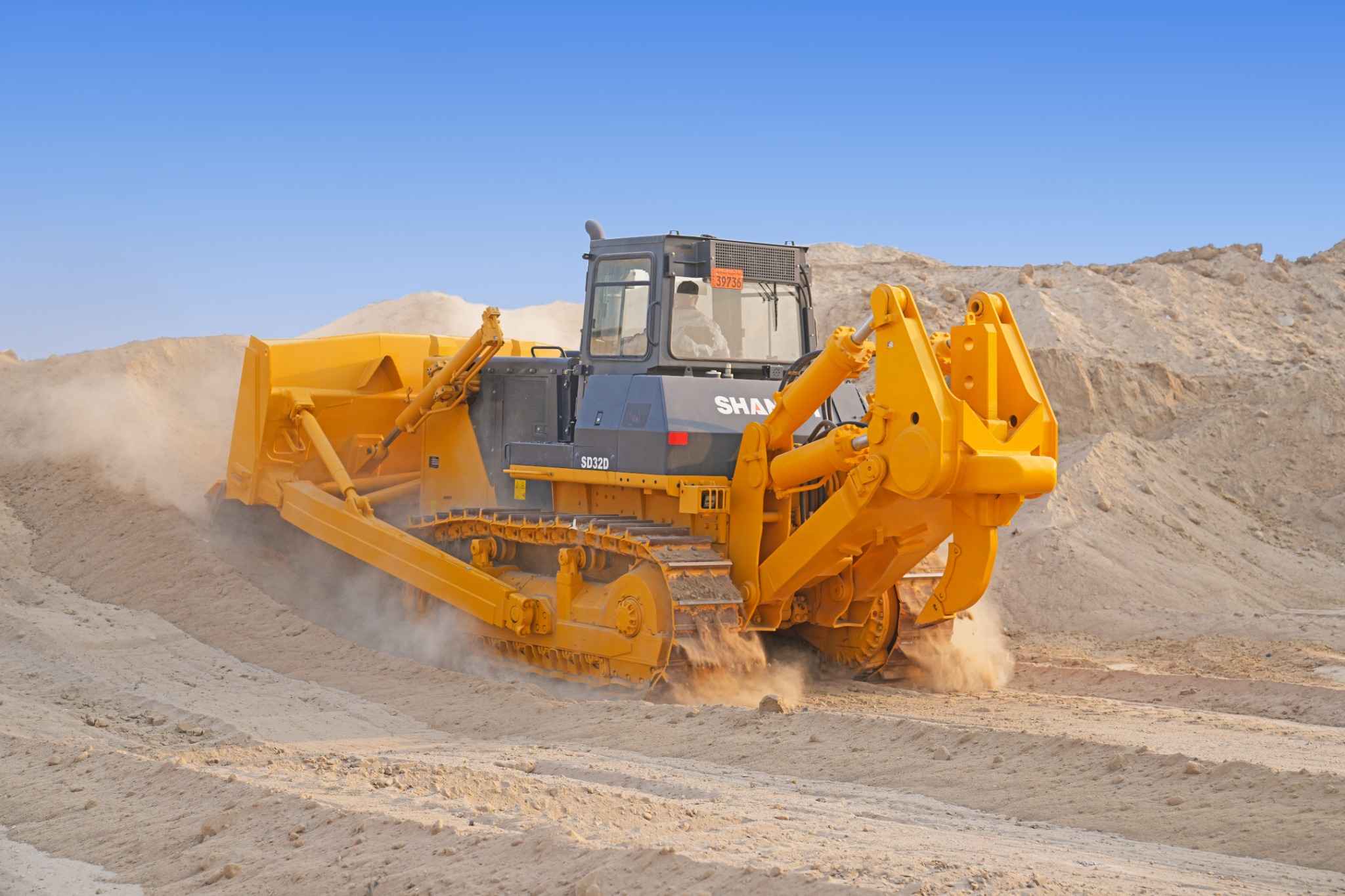

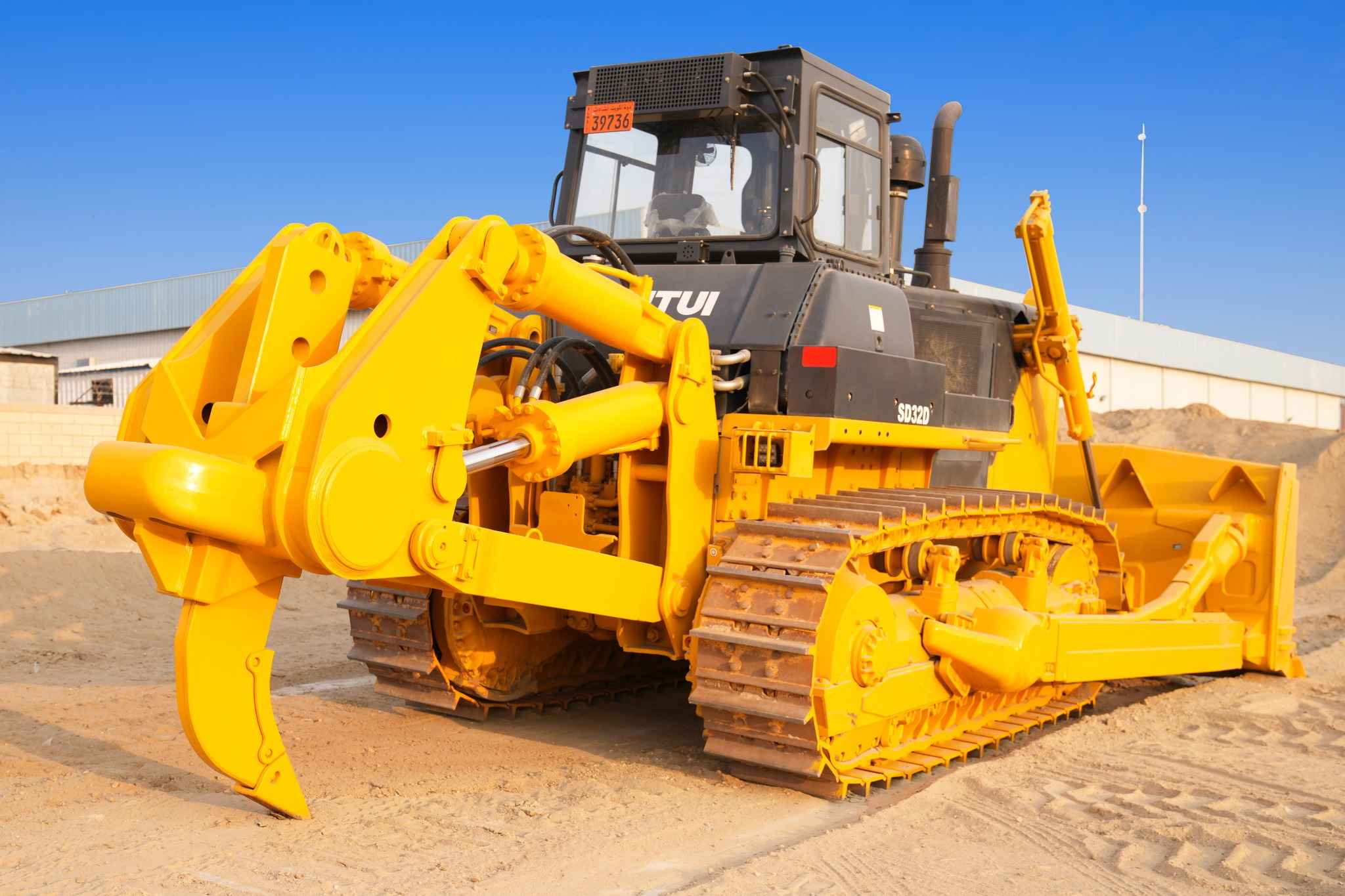

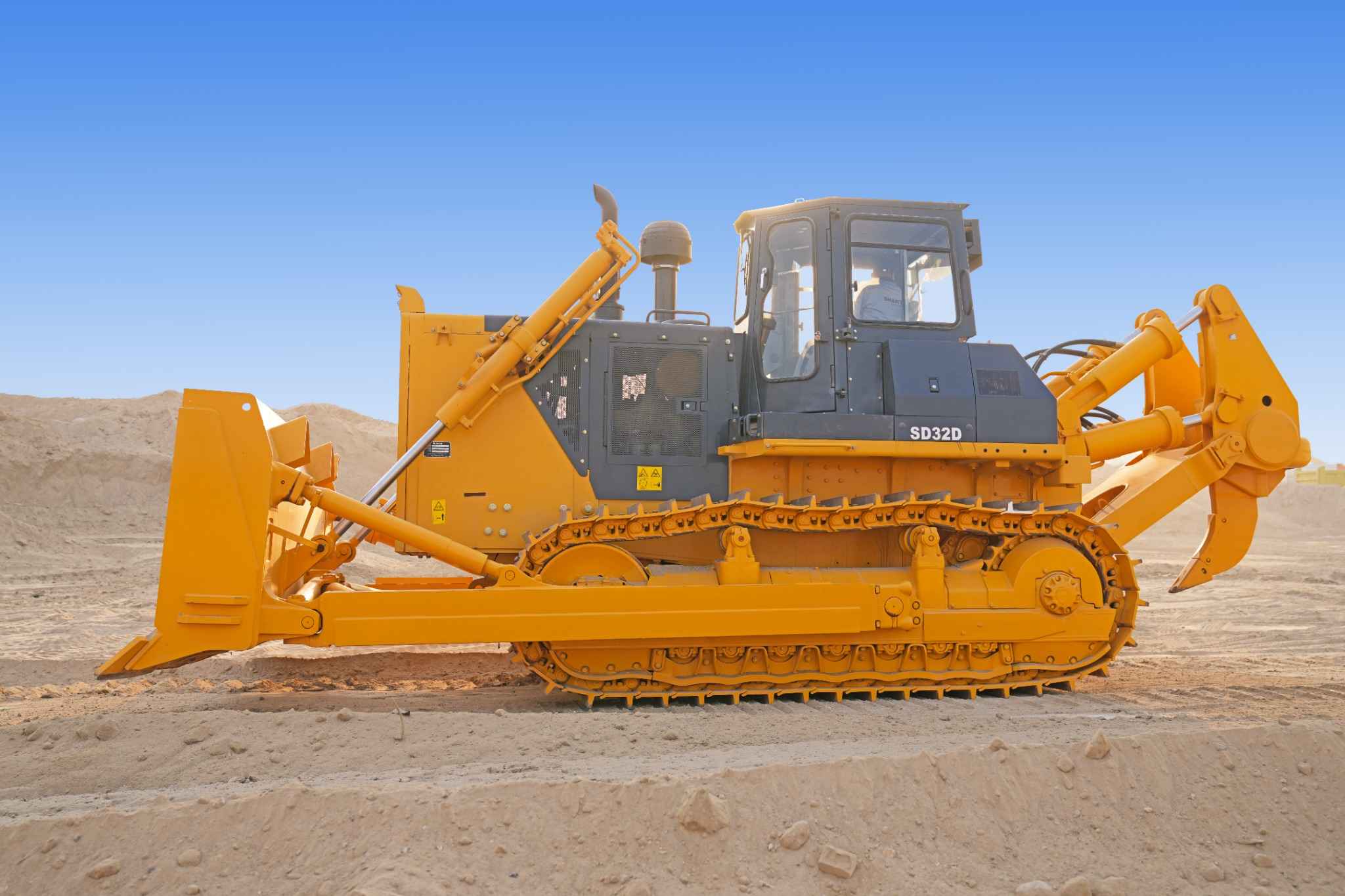

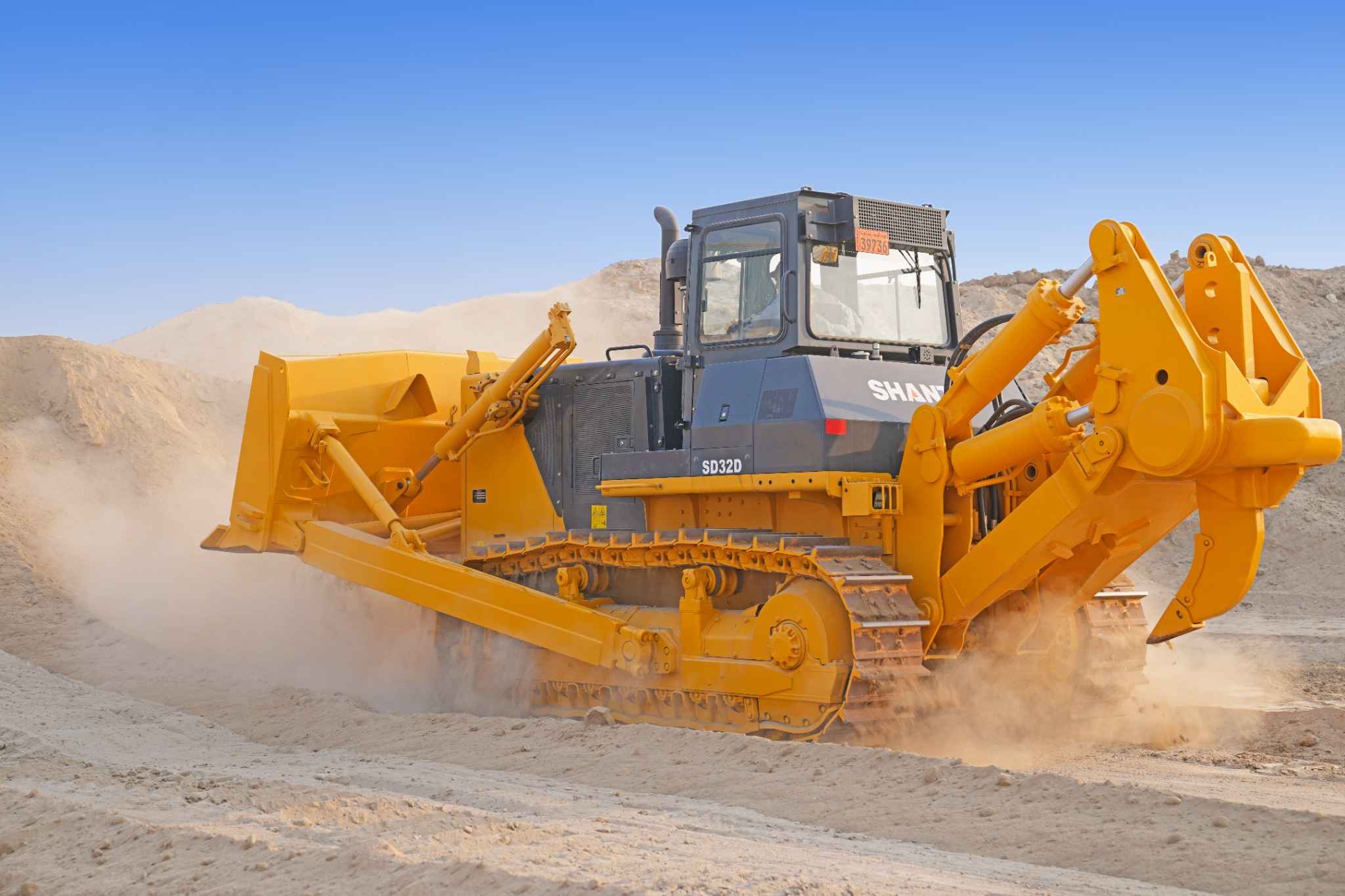

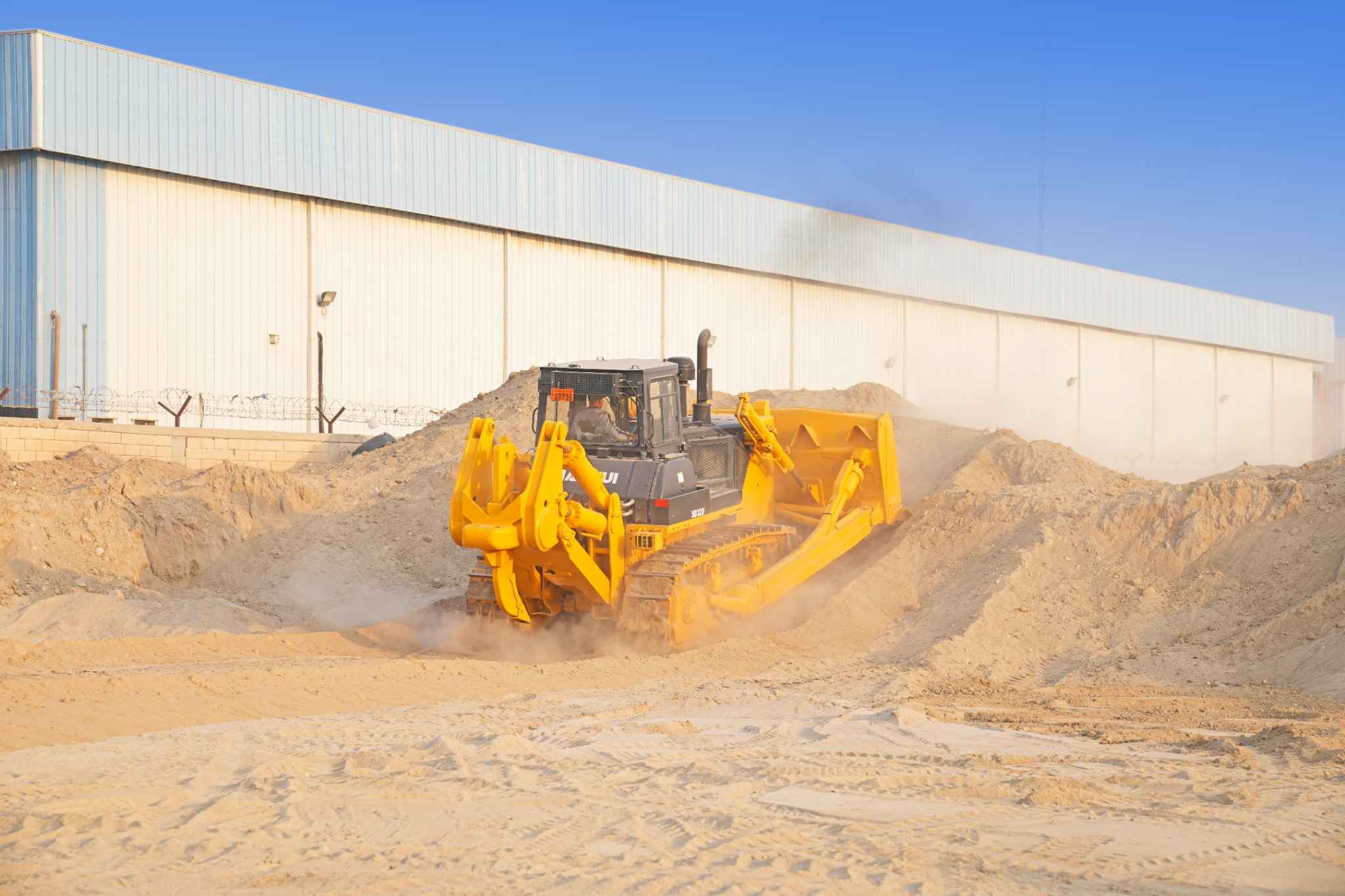

Model: SD32D
Engine Model: Cummins NTA855-C366
Gross Power: 273 kW (365 HP) @ 2000 rpm
Operating Weight: 38,904 kg (with single shank ripper)
High Power and Performance:
Equipped with a Cummins NTA855-C366 engine delivering 273 kW (365 HP) @ 2000 rpm and a maximum torque of 1509 N·m @ 1400 rpm, ensuring powerful pushing capacity.
Heavy Operating Weight:
Standard operating weight of 38,904 kg (with single shank ripper), providing stability and strength in heavy-duty operations.
Durable Drive System:
Shantui-manufactured Torqflow transmission with 3 forward and 3 reverse gears, planetary gear design, and hydraulic actuation for high efficiency and reliability.
Strong Traction Force:
Maximum theoretical traction force of 318.2 kN, allowing effective operation in challenging terrains and tough soil conditions.
Versatile Blade Options:
Multiple blade types available — straight-tilt, angle, semi-U, coal-U, and waste-handling blade, with capacities from 7.2 m³ to 18.3 m³ for diverse applications.
Powerful Ripping Capability:
Available with three-shank or single-shank ripper; maximum ripping depth up to 1250 mm and ripping width up to 2240 mm.
Reinforced Chassis and Undercarriage:
Heavy-duty single grouser tracks, wide shoe options (560–710 mm), and an equalizer bar suspension system for durability and stability.
Large Fuel and Fluid Capacities:
640 L fuel tank, 97 L hydraulic tank, and robust lubrication systems extend operational hours with fewer service interruptions.
Operator Efficiency:
Optimized cabin design with improved visibility, ergonomics, and safety systems for more efficient and comfortable operation.
Model: SD32D
Engine Model: Cummins NTA855-C366
Gross Power: 273 kW (365 HP) @ 2000 rpm
Operating Weight: 38,904 kg (with single shank ripper)
Machine height (without ROPS): 3760 mm
Track grouser height: 72 mm
Ground clearance: 500 mm
Machine length (without draw bar): 6276 mm
Machine length (with draw bar): 6610 mm
Max. lifting height of blade: 1560 / 1703 / 1560 mm
Max. digging depth of blade: 560 / 630 / 560 mm
Digging angle of blade: 55° ± 3°
Blade width: 4130 / 5000 / 4130 mm
Blade height: 1590 / 1140 / 1710 mm
Width (track shoe to track shoe): 2700 mm
Type: Three-shank or single shank ripper
Weight: 4954 kg (three-shank) / 4404 kg (single shank)
Max. ripping depth: 842 mm (three-shank) / 1250 mm (single shank)
Max. lifting height: 883 mm (three-shank) / 955 mm (single shank)
Ripper length (deepest ripping): 2467 mm / 2855 mm
Ripper width: 2420 mm / 1186 mm
Departure angle (at highest lifting): 34.5° / 34.3°
Ripping width: 2240 mm (three-shank only)
Distance between ripper teeth: 1120 mm
Model: Cummins NTA855-C366
Emission: China-I
Rated revolution: 2000 rpm
Gross power: 273 kW (365 hp) @ 2000 rpm
Cylinders: 6 (140 × 152 mm)
Displacement: 14.01 L
Max. torque: 1509 N·m @ 1400 rpm
Cooling system: Mechanical fan
Manufactured by SHANTUI, high efficiency, low breakdown rate
Transmission: Torqflow with 3 forward and 3 reverse gears
Forward speeds: F1 – 3.6 km/h, F2 – 6.6 km/h, F3 – 11.5 km/h
Reverse speeds: R1 – 4.4 km/h, R2 – 7.8 km/h, R3 – 13.5 km/h
Max. theoretical traction force: 318.2 kN
Torque converter: 3-element, single stage, 1-phase
Transmission: Planetary gear and torqflow, hydraulically actuated, forced lubrication
Central drive: Spiral bevel gear, single-stage speed reduction, splash lubrication
Steering clutch: Wet multiple disc, hydraulically actuated
Brake clutch: Wet, contracting band, hydraulic booster
Final drive: Spur gear, double reduction, splash lubrication
Type: Swing type of sprayed beam, equalizer bar suspension
Track shoe type: Single grouser
Track gauge: 2140 mm
Track shoe width: 560/610/660/710 mm (560 mm heavy-duty standard)
Grounding length: 3150 mm
Grounding area: 35,280–44,730 cm²
Track shoes: 41 pcs/side
Ground pressure: 81.7–85.6 kPa
Carrier rollers: 2 pcs/side
Track rollers: 7 pcs/side
Pitch: 228.6 mm
Fuel capacity: 640 L
Coolant: 79 L
Engine oil: 45 L
Hydraulic oil tank: 97 L
Transmission: 185 L
Final drive: 55 L/side
Standard: 34,500–35,230 kg (depending on version)
Types: Straight-tilt, angle, semi-U, coal-U, waste handling blade
Blade capacity: 7.2 / 4.8 / 9 m³ (standard), up to 18.3 m³ (waste handling)
