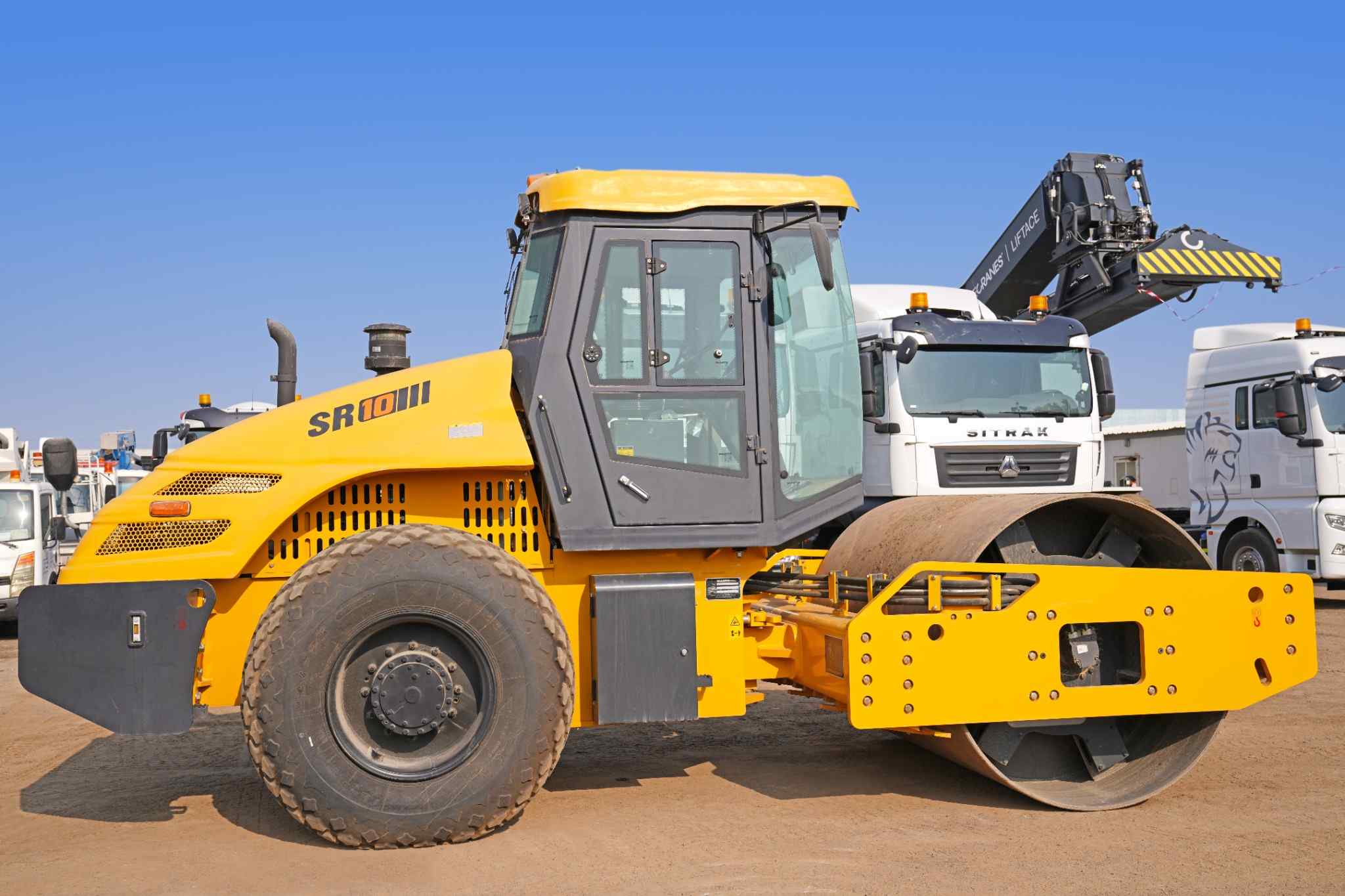

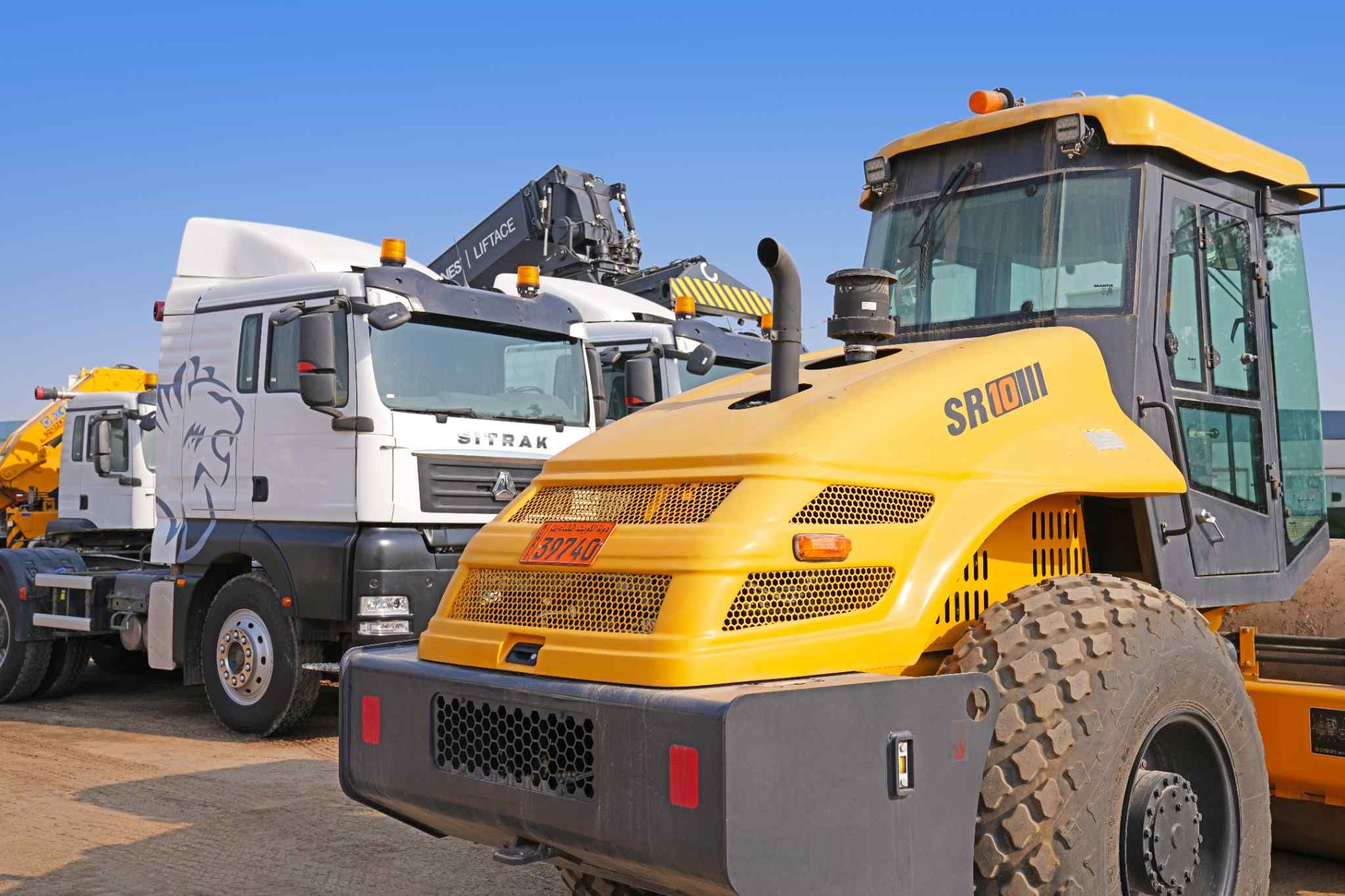

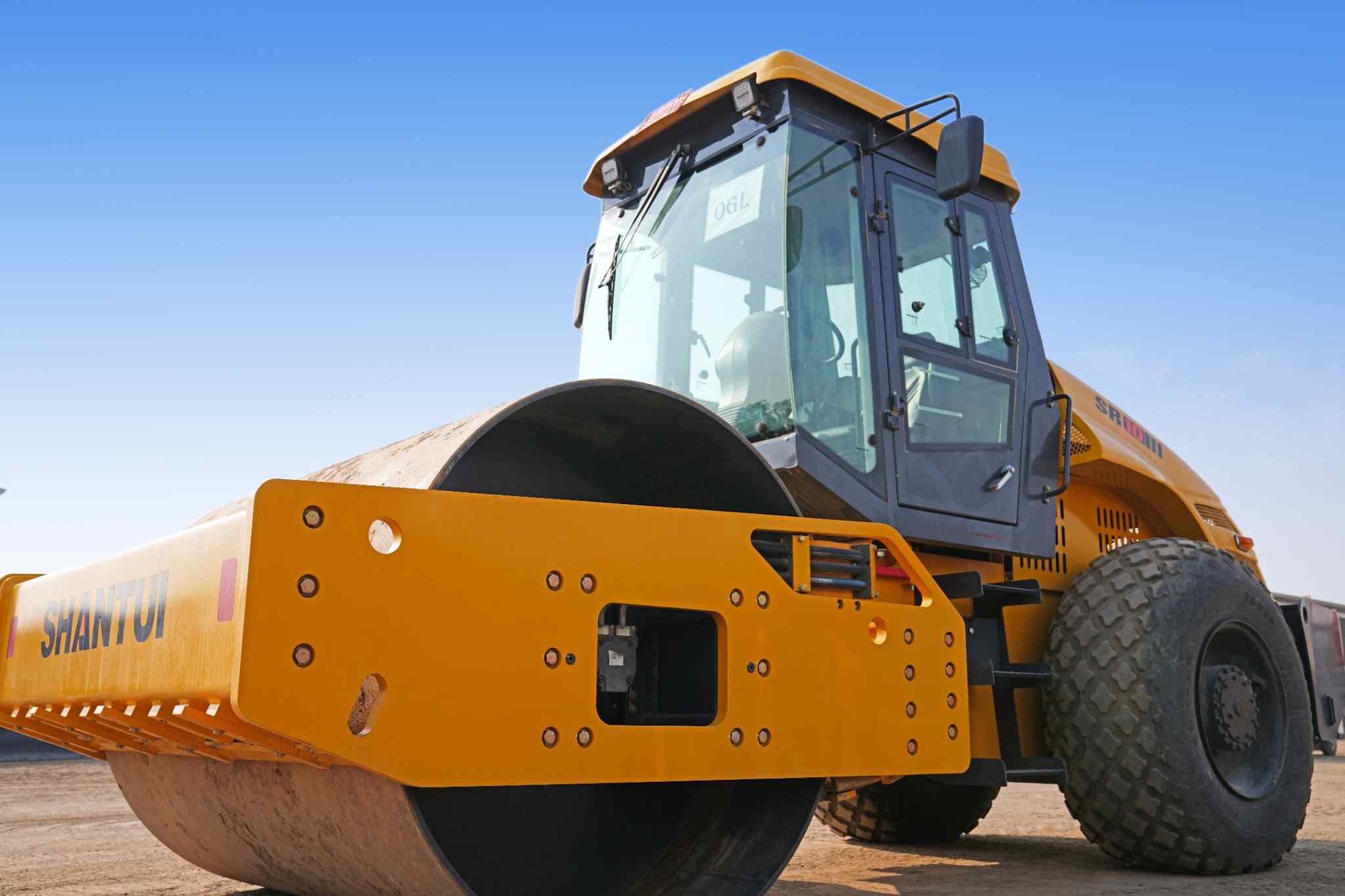

Engine Model: WP4G110E220
Gross Power: 82 kW / 2200 rpm
Operating Weight: 10,000 kg
Powerful Engine
Equipped with the WP4G110E220 engine, delivering 82 kW at 2200 rpm for strong and reliable performance.
High Operating Weight
With an operating weight of 10,000 kg, the SR10 provides excellent compaction force and efficiency.
Durability
Built with robust, heavy-duty components designed to withstand tough and demanding working conditions.
Operator Comfort
Features an ergonomic cab with optimized controls, reduced vibration, and improved comfort to minimize operator fatigue.
Versatile Applications
Well-suited for a wide range of tasks, including road construction, foundation compaction, and large-scale infrastructure projects.
Engine
Model: Weichai WP4G130E22
Type: 4-cylinder, 4-stroke, turbocharged, direct injection, water-cooled
Displacement: 4.5 L
Power: 82 kW @ 2200 rpm
Max Torque: 560 N·m @ 1400–1600 rpm
Operating Weight
Smooth Drum: 10,000 kg
Pad-Foot Drum: up to 11,200 kg
Drum & Compaction
Width: 2,130 mm
Diameter: 1,500 mm (smooth) / 1,700 mm (pad-foot)
Amplitude: High 2 mm / Low 1 mm (smooth); High 1.5 mm / Low 0.8 mm (pad-foot)
Frequency: High 36 Hz / Low 30 Hz
Centrifugal Force: High 270 kN / Low 180 kN
Performance
Gradeability: 48 %
Travel Speed (Forward / Reverse):
Low: 0–5.3 km/h
High: 0–9.9 km/h
Dimensions
L × W × H: 5,890 × 2,305 × 3,160 mm
Minimum Turning Radius: 6,400 mm
Load Distribution
Front Drum Axle: ~6,000 kg (smooth) / ~6,350 kg (pad-foot)
Rear Axle: ~4,000 kg
Tank Capacity
Fuel Tank: 230 L
Additional Features
Hydrostatic double-drive system with stepless speed regulation
Articulated hydraulic steering: ±35° angle, ±12° oscillation
Multi-mode braking: service, parking, and emergency brakes
Maintenance-friendly hood design with ground-level service access
