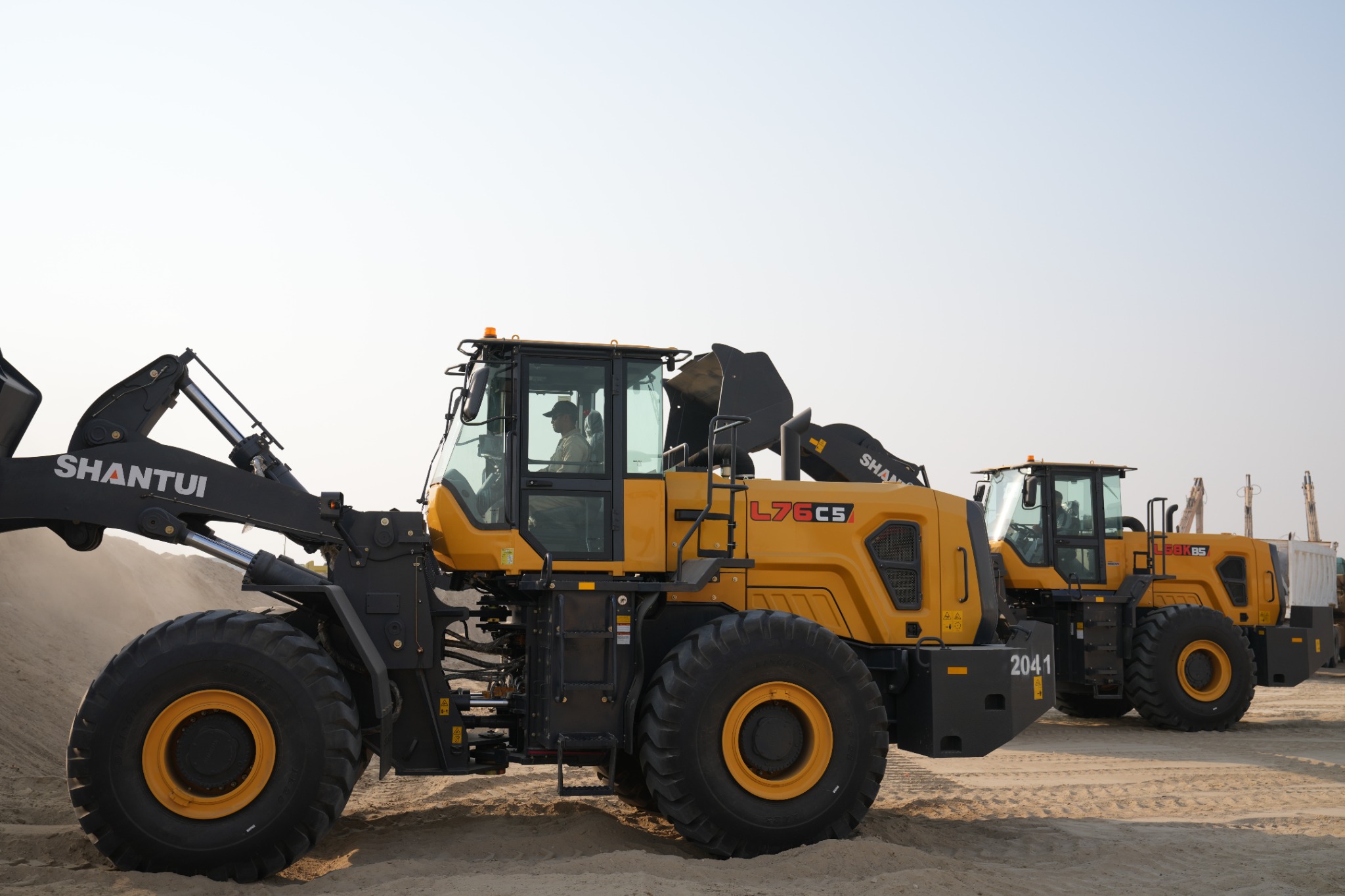

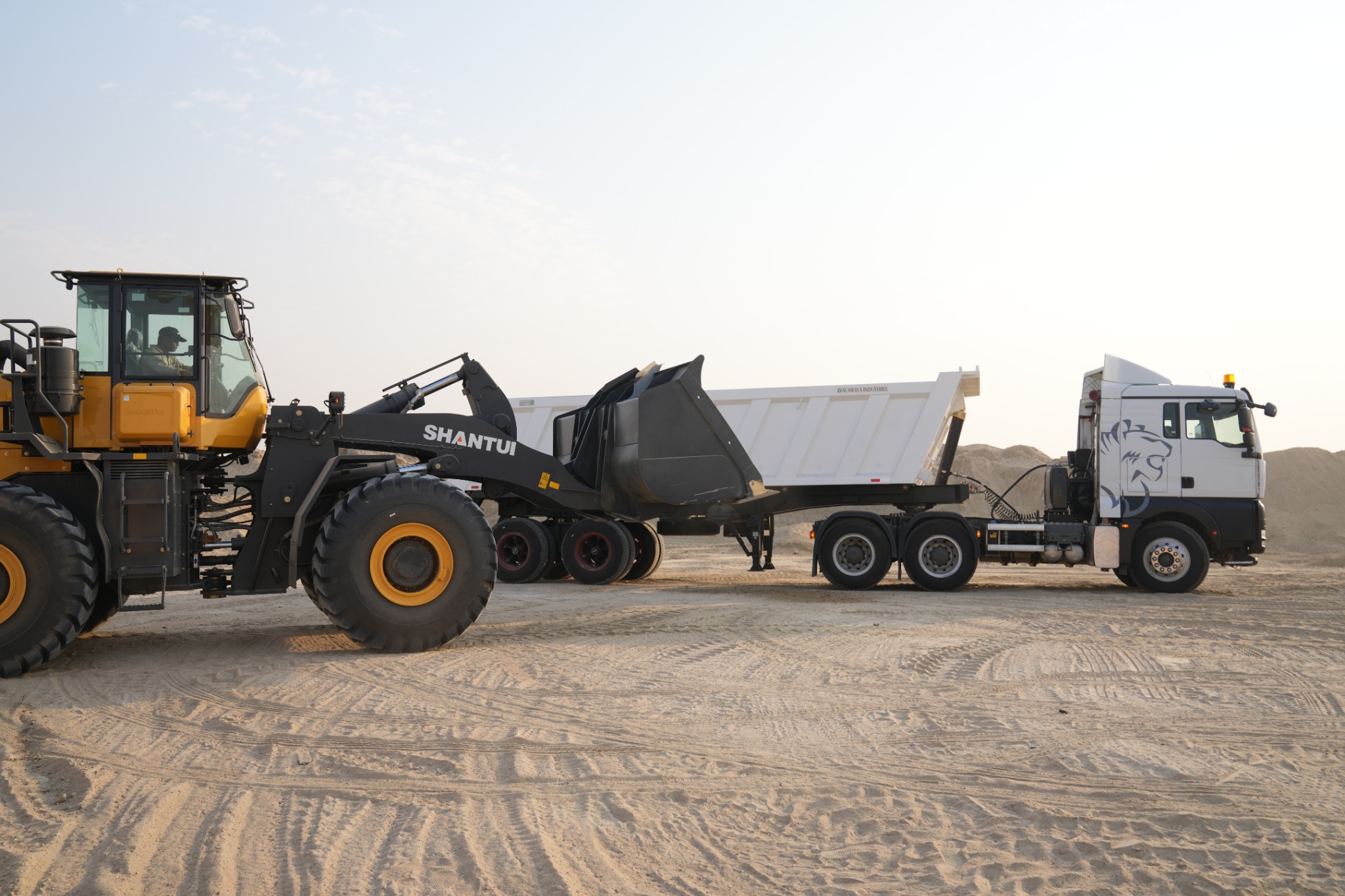

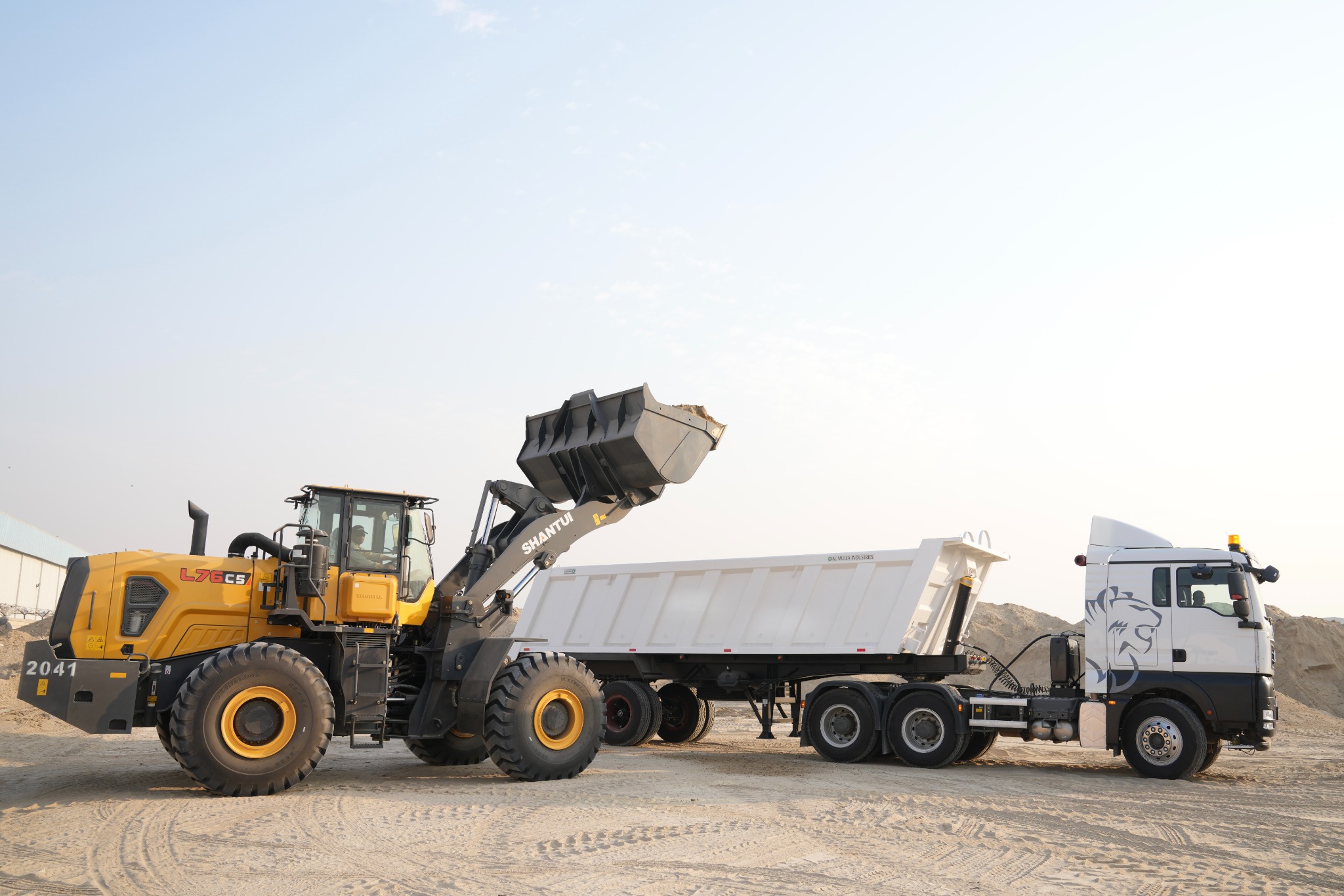

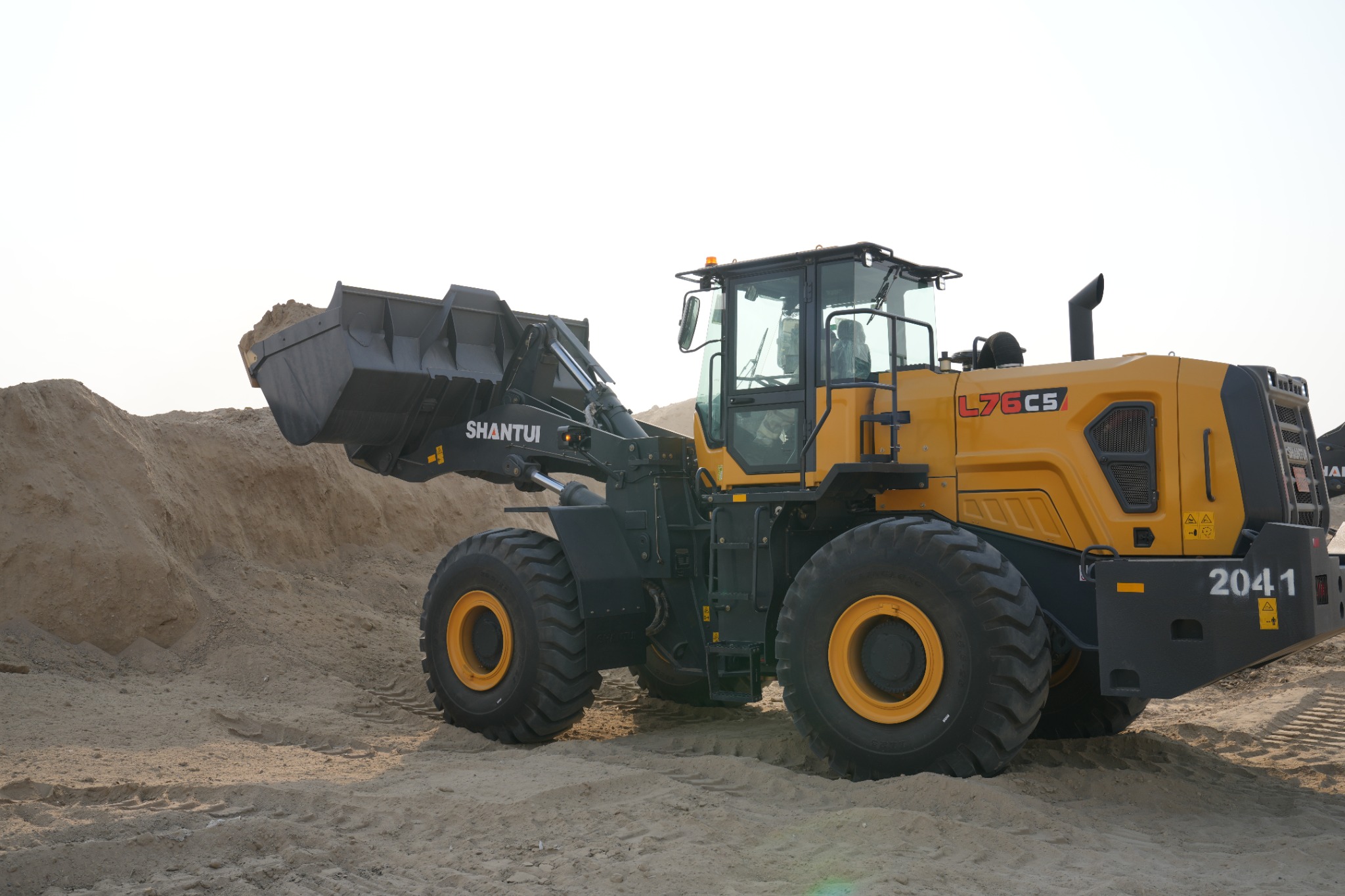

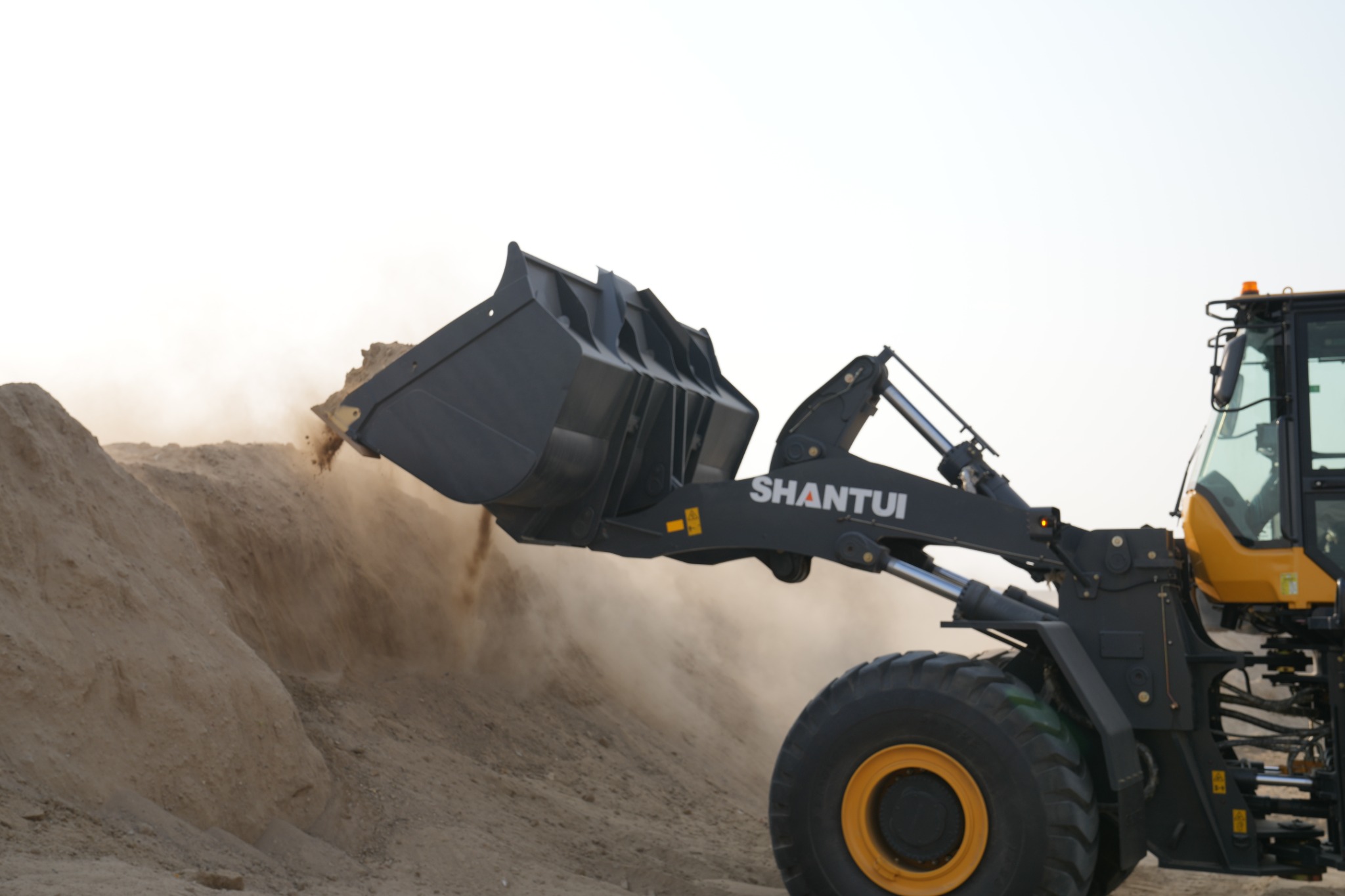

7-ton class wheel loader designed for heavy-duty applications.
Powered by a Cummins Tier 3 engine delivering 209 kW.
Large 5 m³ bucket and 24,800 kg operating weight.
Strong digging force with 215 kN breakout and 160 kN tipping load.
Fast cycle times for higher efficiency on site.
Durable transmission and reliable hydraulic system for long service life.
Built for quarrying, construction, and mining operations.
High Power Engine: Cummins QSL8.9-C280-30, 209 kW @ 2200 rpm, Tier 3 compliant.
Heavy Duty Capacity: 24,800 kg operating weight with a large 5 m³ bucket.
Strong Performance:
Tipping load: 160 kN
Breakout force: 215 kN
Fast cycle time: 10.1 s
Excellent Loading Ability:
Dump clearance: 3,540 mm
Hinge pin height: 4,800 mm
Dump reach: 1,220 mm
Efficient Transmission: Electronically controlled, 4 forward / 3 reverse speeds, up to 39.4 km/h.
Reliable Systems:
Articulated steering with 20 MPa system pressure.
Air-over-hydraulic disc service brakes + air-actuated parking brake.
Hydraulic Power: Constant variable dual pump with 25 MPa relief pressure.
Durable Build: Large chassis dimensions, 480 mm ground clearance, and ±12° axle oscillation.
Large Service Capacities: 365 L fuel tank and 185 L hydraulic oil tank for long operation times.
Make: Cummins
Model: QSL8.9-C280-30
Emission Regulation: Tier 3 / Stage III
Rated Power: 209 kW @ 2200 rpm
Max Torque: 1250 N·m
Displacement: 8.9 L
Cylinders: 6
Aspiration: Turbocharged
Operating Weight: 24,800 kg
Bucket Capacity: 5 m³
Tipping Load (Full Turn): 160 kN
Bucket Breakout Force: 215 kN
Maximum Dump Angle: 45°
Dump Clearance (Full Height): 3,540 mm
Dump Reach (Full Height): 1,220 mm
Maximum Hinge Pin Height: 4,800 mm
Digging Depth (Bucket Level): 100 mm
Type: Electronically controlled fixed shaft
Torque Converter: Single stage, three elements
Travel Speed (Forward): 39.4 km/h (4 speeds)
Travel Speed (Reverse): 25.8 km/h (3 speeds)
Main Pump: Constant variable dual pump confluence
Main Relief Pressure: 25 MPa
Raise Time: 5.5 s
Total Cycle Time: 10.1 s
Service Brake: Caliper disc, air over hydraulic
Parking Brake: Caliper, air actuated
Size: 26.5-25
Length: 9,445 mm
Width: 3,236 mm
Height: 3,670 mm
Wheelbase: 3,550 mm
Wheel Tread: 2,380 mm
Ground Clearance: 480 mm
Turn Angle (Each Side): 38°
Turning Radius (Outside Tire): 6,345 mm
Turning Radius (Bucket Carry): 7,560 mm
Fuel Tank: 365 L
Hydraulic Oil Tank: 185 L
Engine Oil: 21 L
Axles (each): 43 L
Transmission: 46 L
Antifreeze: 80 L
